Traffic Control System 🚦

Table of Contents

Workflow Status

Workflow Status
CI MVC Application CI MVC Application
CI API Application CI API Application
CI Video Application CI Video Application
CD MVC, API, and Video Applications CD MVC, API and Video Applications
Client CI Pipeline Client CI Pipeline

Introduction & Background

A smart traffic control system designed to efficiently manage and optimize traffic flow.

Background

In the modern day, successfully controlling urban traffic in the city is a necessity due to the ever-increasing number of vehicles and, consequently, the need for pedestrian safety. In considering the traffic control system, what comes to mind is its ability to handle complex, changing traffic conditions, communicate clearly, and be accessible to visually impaired pedestrians. Additionally, incorporating sophisticated monitoring and control features into these systems continues to pose a technical challenge.

A frequent drawback in previous designs was the dependence on RF-link communication, which imposed limitations regarding data transmission reliability and scalability. To overcome these limitations, this project shifts to utilizing WiFi communication, providing increased flexibility, greater bandwidth, and improved compatibility with contemporary web-oriented control systems.

Rationale

When determining the core processing unit, the Raspberry Pi was selected with the vision of being capable of employing adaptable and affordable embedded systems. Some of the benefits of the Raspberry Pi include real-time data processing, streamlined integration with cameras and sensors, and effective communication through WiFi. This makes it a perfect option for projects that need both hardware management and software interaction.

The web technologies were chosen to offer an intuitive user interface for system supervision and management. A .NET MVC website was created, incorporating Microsoft Identity Framework for secure user login, allowing the traffic system managers to have remote access to the system. As a result, supervisors can easily change parameters, manually control traffic signals, and view stored camera data such as images and videos of traffic violations. The addition of video imaging features improves the dependability of the system by allowing for future footage examination, holding violators accountable.

Scope

The prototype created in this project tackles essential elements of traffic management by emphasizing real-time regulation and accessibility components. The system comprises:

  1. Real-Time Traffic Management: Combining magnetic reed switches and pedestrian buttons enables adaptive modification of traffic signals according to the presence of vehicles and pedestrians.
  2. Pedestrian Support: Buttons to signal a pedestrian to cross safely. Additionally, chimes at the time of safe crossing to signal the visually impaired are included.
  3. Traffic Violation Surveillance: A CMOS camera records high-quality images of traffic infractions, with video recording capabilities available for immediate processing and storage.
  4. Remote Management: A prototype website, developed using .NET MVC, allows for secure manual traffic light operations and remote observation of violation information.

This project provides a scalable solution for traffic control issues by incorporating contemporary technologies and enhancing traditional models. Future versions can upgrade the system’s capabilities to incorporate sophisticated image recognition, cloud storage, and overall traffic management across the network.

Design Specifications

The Traffic Light Control System is designed to improve traffic management and pedestrian safety while addressing modern urban mobility challenges. The system provides:

  • Accessibility for Visually Impaired Pedestrians: Auditory signals inform visually impaired individuals when it is safe to cross the street.
  • Traffic Violation Detection: The Traffic Light Control System uses pressure sensors in order to detect when a vehicle crosses an intersection under a red light. It also uses a camera to take a picture of the violator's license plate, and record it for further use.
  • Remote Control and Data Access: The system uses a user friendly GUI, which, when connected to the internet, allows for monitoring the intersection at real time. Other features include recording and storing violations, and also manually adjusting the lights using an override.
  • Operation Modes: The user can change traffic signal timings in accordance to different times of the day. this is useful for when there is an unexpected scenario, or an increase or decrease in traffic.
  • Power and Processing Requirements: A 5V power supply supports a Raspberry Pi single-board computer. The Raspberry Pi's integrated GPIO pins are used to interface with sensors, cameras, and traffic signal components, making it a very easy to use platform for this application.

Pedestrian Detection and Safety

The SSD-MobileNetV2-FPNLite model is used to properly identify and classify pedestrians, vehicles and other objects. Pytesseract is used to extract license plates from vehicles that have commited traffic violations. For pedestrian safety, buzzers are used to sound for when there is a traffic violation detected, which is used alongside a pressure sensor. Lastly, other audio beeps are used for when a pedestrian requests to cross, and then they are sounded to make both the pedestrian and driver alerted of the shortened signal timings.

Real-Time Video Streaming

RTMP ensures smooth video streaming from the CMOS camera to the GUI. This allows the user to be able to control traffic remotely, and make any changes necessary. They can also monitor the live intersection, and look at recorded traffic violations, should they deem necessary.

Hand Drawn Schematic of the Physical Design

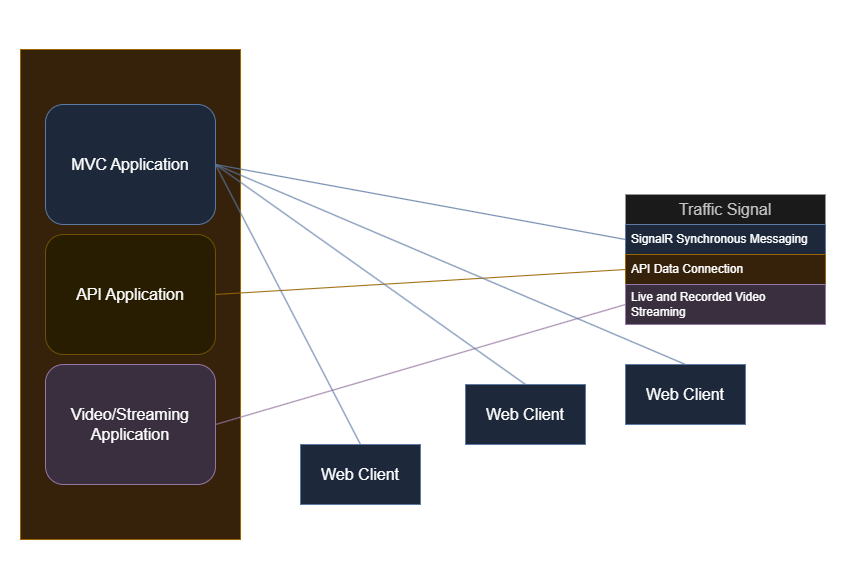

Microservice Architecture Design Diagram

Early Design Mockup

Final Design Implementation

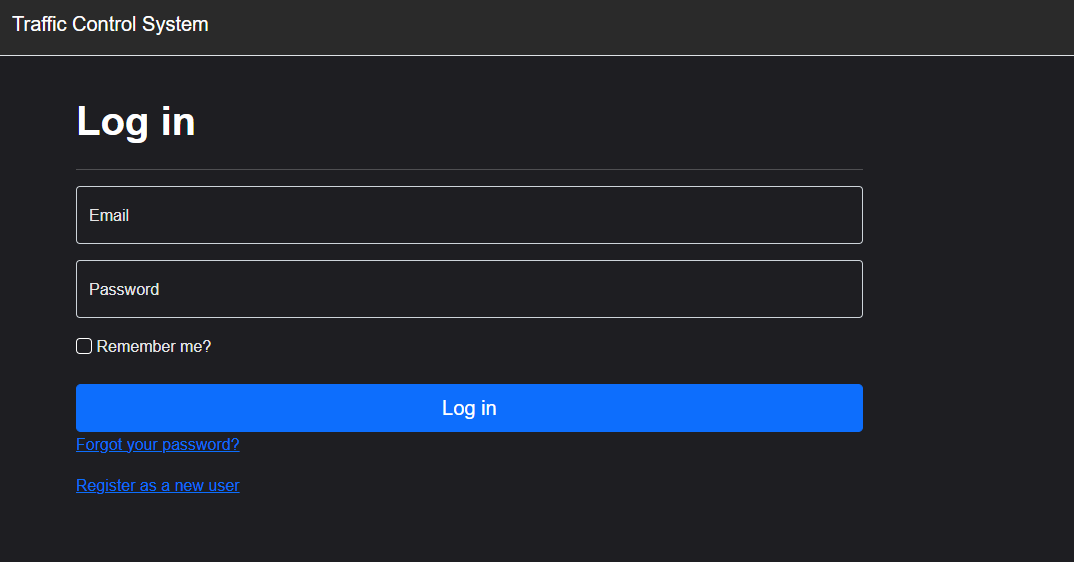

User Login

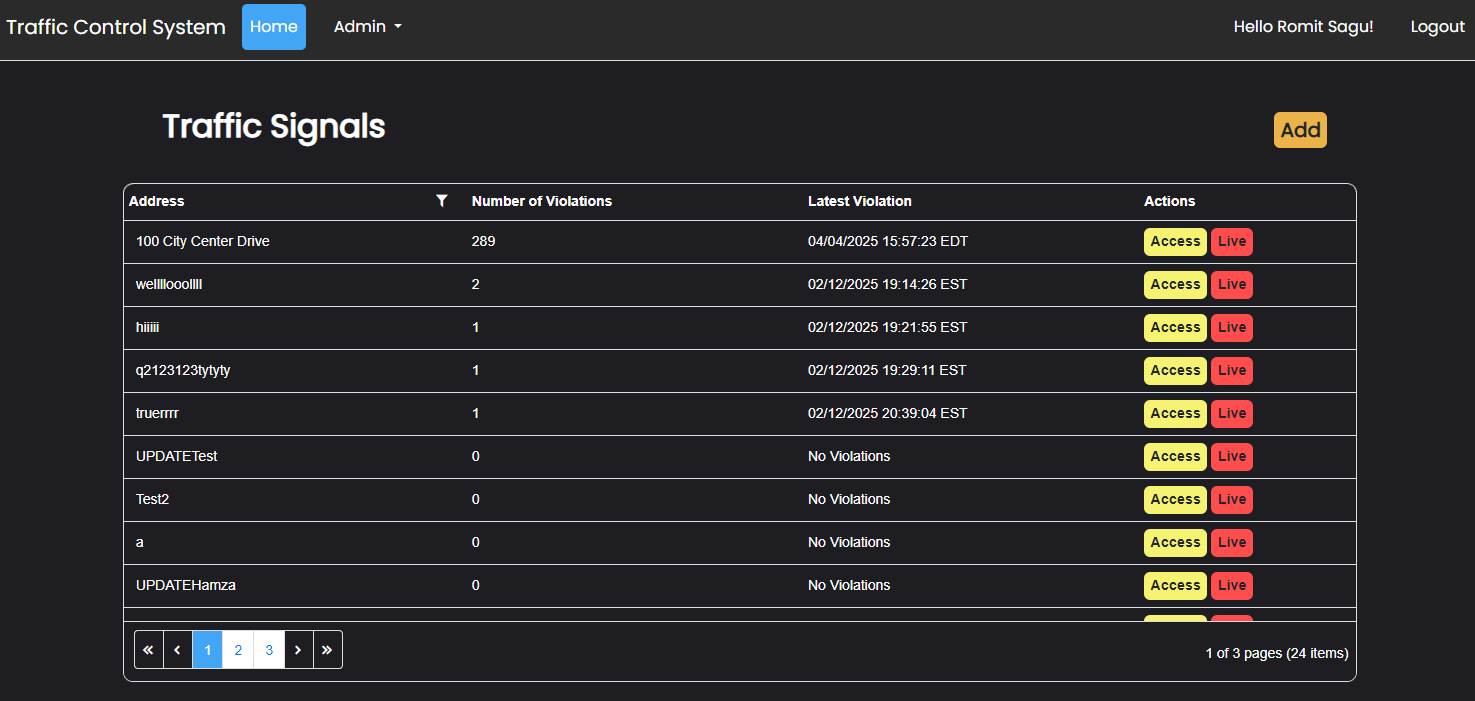

Available Signals

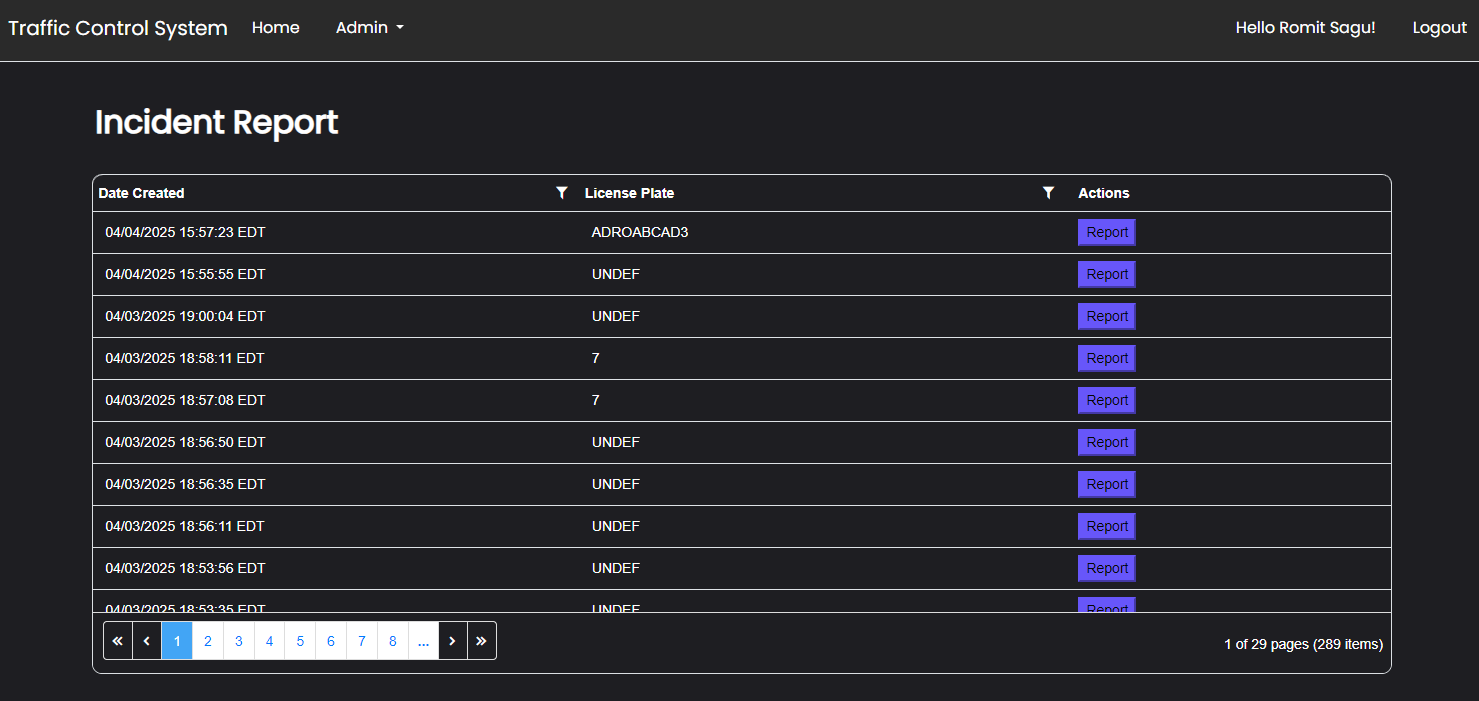

Incident Reports for a Traffic Light

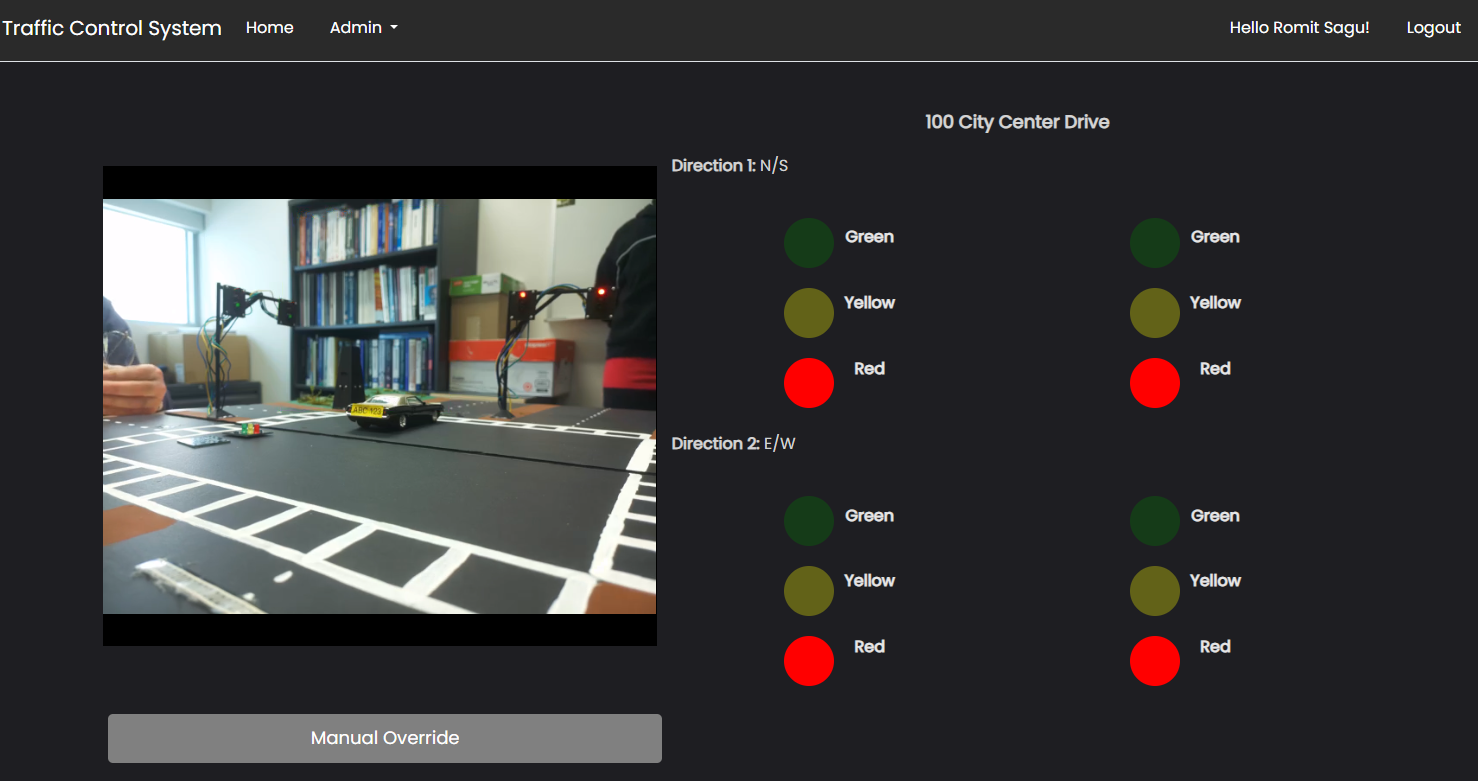

Live Traffic Light

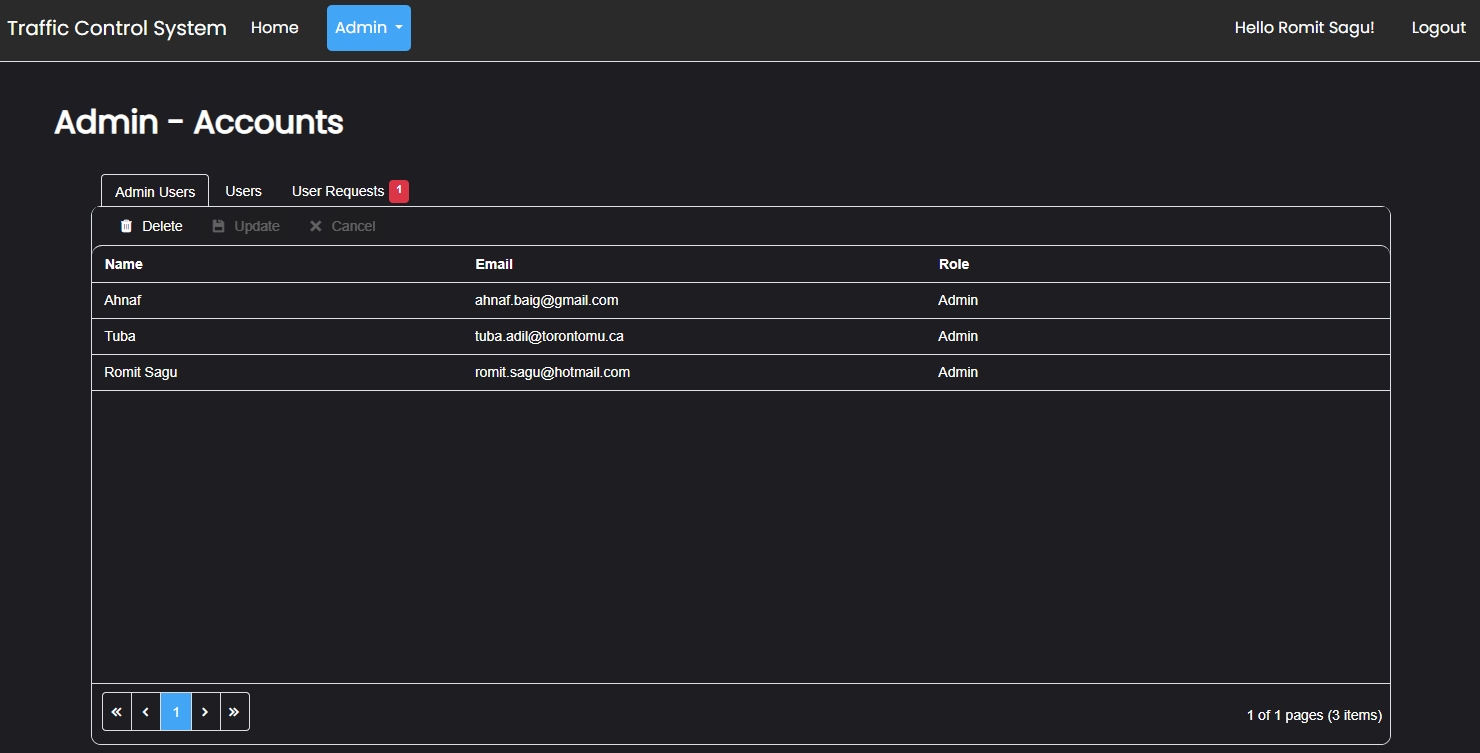

Accounts Page

Physical Design Components

To make the physical design look cohesive, a custom Printed Circut Board was designed and manufactured to replicate an actual traffic light. The CAD and PCB design files are availabe here. The CAD files were designed using Fusion 360 and the PCB was created using KiCAD.

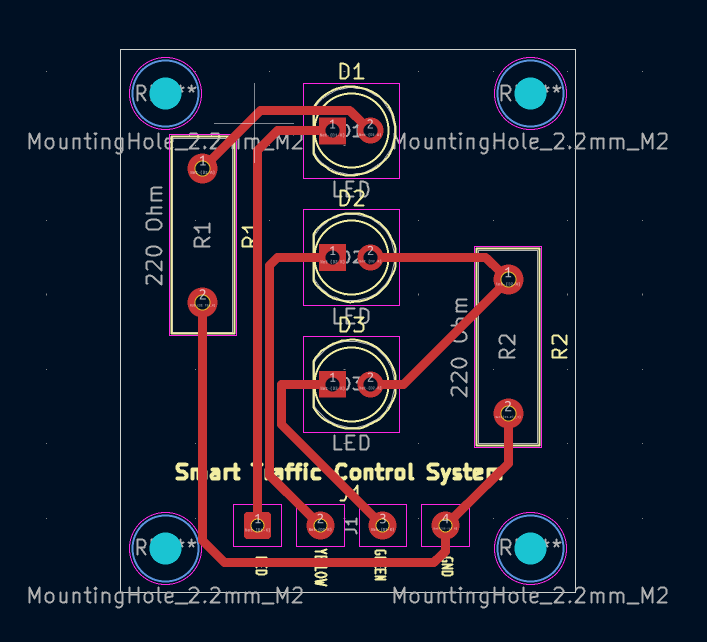

PCB Design Image

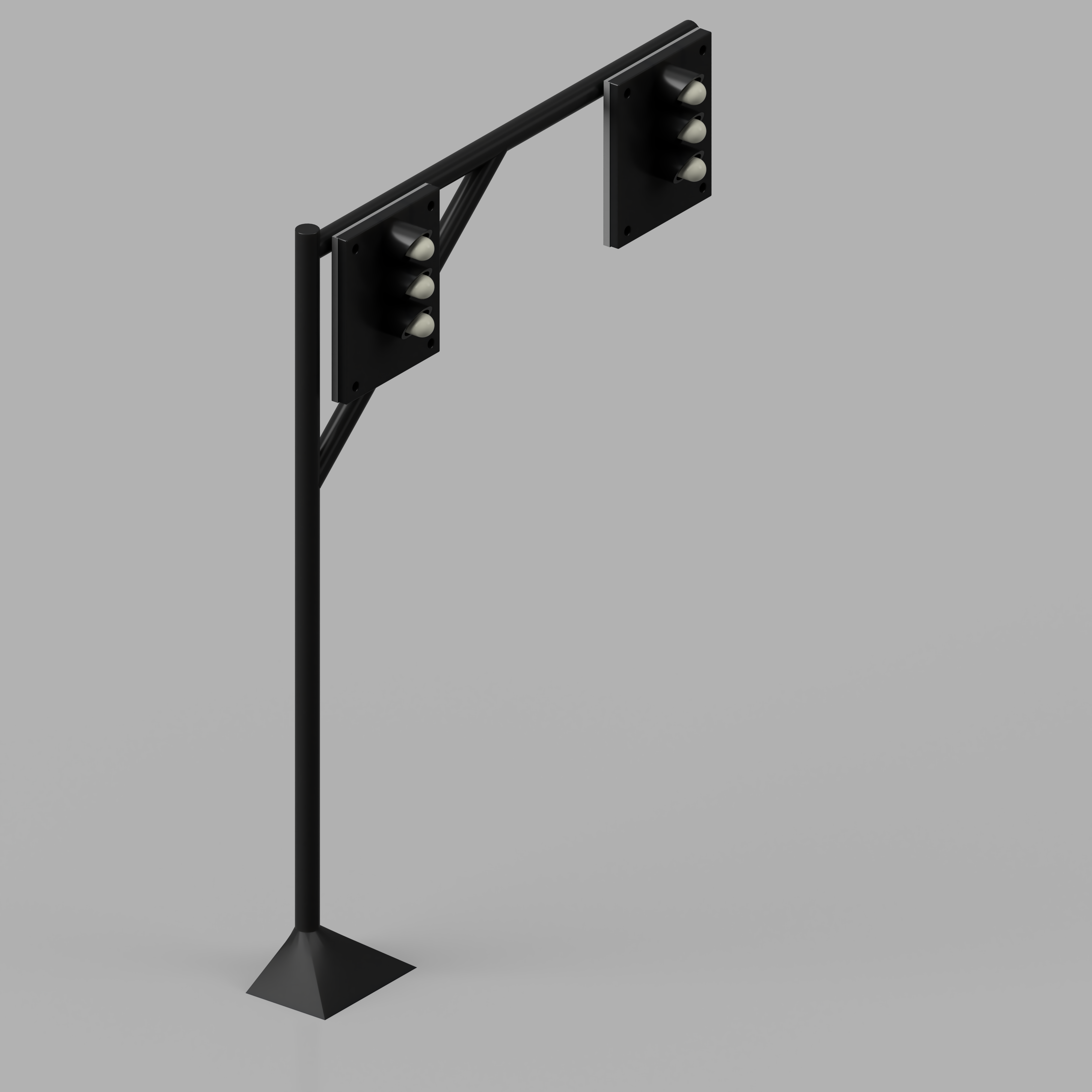

Design Assembly Render

Design Assembly Render Video

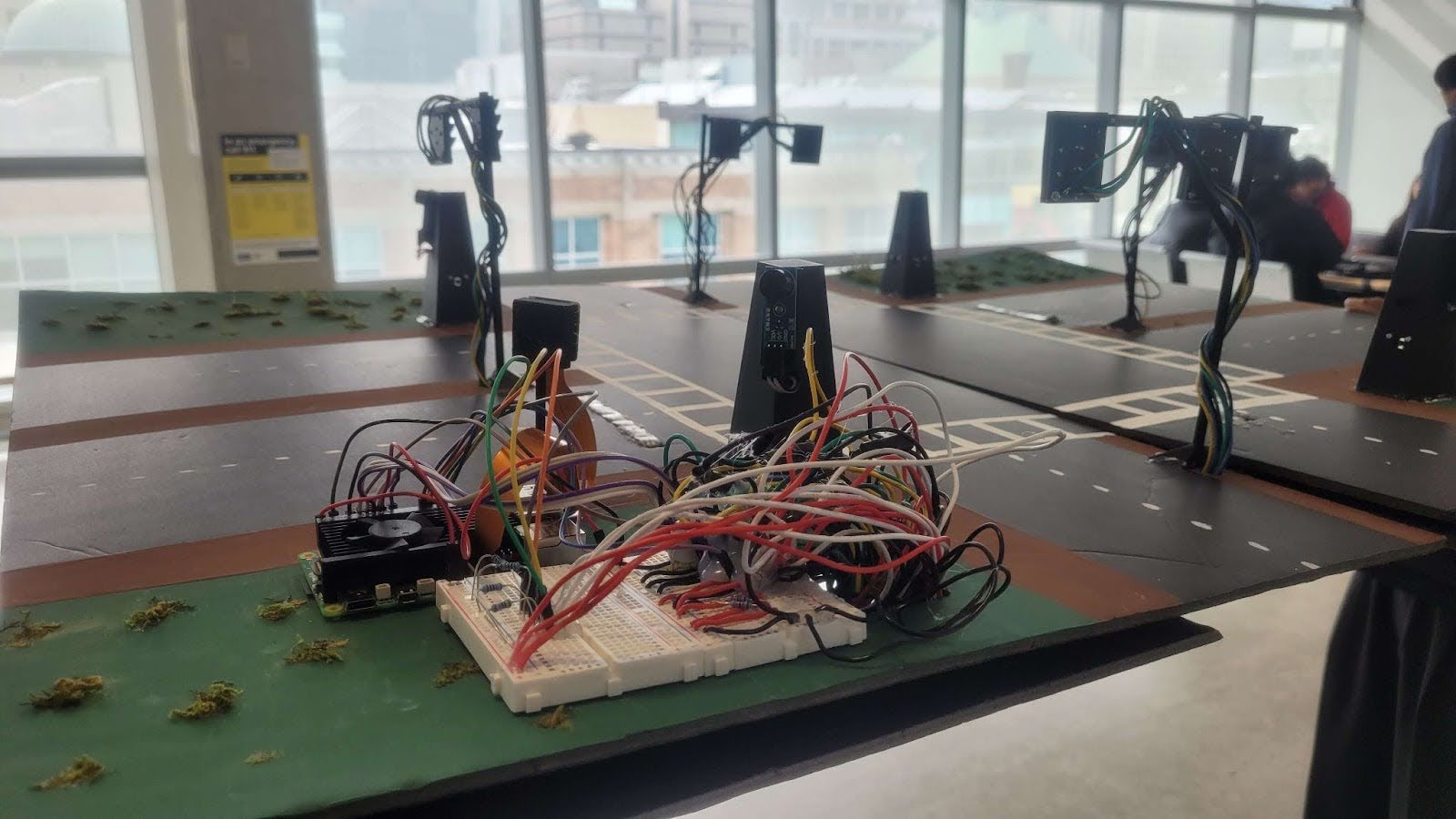

Physical Design Photo

Installing the Microservices

Use docker-compose.yml and change the variables where applicable to allow the microservices to communicate with each other. Use SSL certificates as required. The JWT_KEY should be the same on all the services.

docker-compose.yml:

version: '3.8'

services:
  mvc:
    image: ninepiece2/traffic-control-system:mvc
    container_name: Traffic-Control-System
    ports:
      - "8443:8443"
    volumes:
      - /root/certs:/https:ro
    environment:
      - ASPNETCORE_URLS=https://*:8443;http://*:8080
      - ASPNETCORE_Kestrel__Certificates__Default__Path=/https/ssl.crt
      - ASPNETCORE_Kestrel__Certificates__Default__KeyPath=/https/ssl.key
      - ASPNETCORE_ENVIRONMENT=${ASPNETCORE_ENVIRONMENT}
      - SyncfusionLicense=${SyncfusionLicense}
      - BaseUrl=https://trafficcontrolsystem.romitsagu.com
      - VideoServiceURL=https://stream-trafficcontrolsystem.romitsagu.com
      - StreamServiceURL=https://stream1-trafficcontrolsystem.romitsagu.com
      - APIURL=https://api-trafficcontrolsystem.romitsagu.com
      - API_KEY=${JWT_Key}
    command: ["dotnet", "Traffic-Control-System.dll"]
    restart: always

  api:
    image: ninepiece2/traffic-control-system:api
    container_name: Traffic-Control-System-API
    ports:
      - "8445:8445"
    volumes:
      - /root/certs:/https:ro
    environment:
      - ASPNETCORE_URLS=https://*:8445;http://*:8080
      - ASPNETCORE_Kestrel__Certificates__Default__Path=/https/ssl.crt
      - ASPNETCORE_Kestrel__Certificates__Default__KeyPath=/https/ssl.key
      - ASPNETCORE_ENVIRONMENT=${ASPNETCORE_ENVIRONMENT}
      - StreamServiceURL=https://stream1-trafficcontrolsystem.romitsagu.com
      - JWT:Issuer=https://api-trafficcontrolsystem.romitsagu.com
      - JWT:Audience=https://api-trafficcontrolsystem.romitsagu.com
      - JWT:Key=${JWT_Key}
    command: ["dotnet", "Traffic-Control-System-API.dll"]
    restart: always

  video:
    image: ninepiece2/traffic-control-system:video
    container_name: Traffic-Control-System-Video
    ports:
      - "1935:1935"
      - "8446:8446"
    volumes:
      - /root/certs:/https:ro
    environment:
      - ASPNETCORE_URLS=https://*:8446;http://*:8080
      - ASPNETCORE_Kestrel__Certificates__Default__Path=/https/ssl.crt
      - ASPNETCORE_Kestrel__Certificates__Default__KeyPath=/https/ssl.key
      - ASPNETCORE_ENVIRONMENT=${ASPNETCORE_ENVIRONMENT}
      - JWT:Issuer=https://stream-trafficcontrolsystem.romitsagu.com
      - JWT:Audience=https://stream-trafficcontrolsystem.romitsagu.com
      - JWT:Key=${JWT_Key}
    command: ["dotnet", "Traffic-Control-System-Video.dll"]
    restart: always

Client Install Instructions:

Run the following on a Raspberry Pi 5. This will install docker, docker compose and create a new folder with the docker-compose.yml file and a config file located under config/config.json. After creating a new traffic light in the MVC application enter the outputed config values in the config/config.json file. Follow the instructions and run docker compose up -d/docker-compose up -d within the created folder to run the container and traffic light application.

curl -O https://raw.githubusercontent.com/NinePiece2/Traffic-Control-System/refs/heads/master/RaspPiPythonScripts/installer.sh && sudo bash installer.sh

Client Debugging

If you enconuter:

OSError: [Errno 12] Cannot allocate memory

Go to the file sudo nano /boot/firmware/config.txt

Locate the line dtoverlay=vc4-fkms-v3d and change it to dtoverlay=vc4-fkms-v3d,cma-256 and Restart the Raspberry Pi.
